Polacanthus, an Isle of Wight ankylosaur

Meaning

Many Spined

Length

up to 4 metres (12 feet)

Classification

Thyreophora,
Ankylosauria,
Polacanthidae Wieland, 1911

Polacanthus foxii Owen, 1865

Locations

The original specimen was found in “a bed of blue shaly clay, which occurs near the middle of the cliff, a short distance east of Barnes Chine” (Hulke, 1881), Brighstone Bay

In Polacanthus the atlas and axis are separate. The dorsal surface of the presacral centra are deeply V-shaped excavated by the neural canal; The synsacrum consists of five dorsosacral, four sacral and one or two sacrocaudal vertebrae. Caudal vertebrae transverse processes are present as far as the distal third of the tail, and the chevrons are not fused to the caudal centra.

The coracoids are co-ossified to the scapula. The supraspinous fossa is absent. The humerus has a large deltopectoral crest that extends to midlength of the shaft; The ilium has a short, scarcely divergent preacetabular process. The femur with distinct lesser trochanter and fourth trochanter at the midlength of the shaft. The tibia is 37% shorter than femur.

The armour is quite impressive, with bilateral rows of dorso-laterally placed conical spines along the trunk, tallest over the pectoral area, and tall, laterally flattened, triangular-shaped, laterally placed cervico-pectoral spines on solid, curved bases. Very noticeable is the large flat rectangular dermal shield covering ilia and synsacrum, ornamented dorsally with large oval ridged bosses laterally, low round bosses medially and separated by tubercules. Large tall-spined flattened plates extend laterally from the edges of the sacral shield. There are bilateral rows of laterally flattened, hollow-based caudal plates, and the distal tail ends in a bone mass composed of oval dermal bones overlying a fused vertebral core and ventral ossified tendons. The underside of the osteoderms show cross-hatching of fibrous bone, and are among the most common Polacanthus material found on the island.

Polacanthus is not the only ankylosaur in the Wealden, as there is the similar Hylaeosaurus known from Sussex. However, these two may be distinguished by the scapula and coracoid, as these are co-ossified in Polacanthus

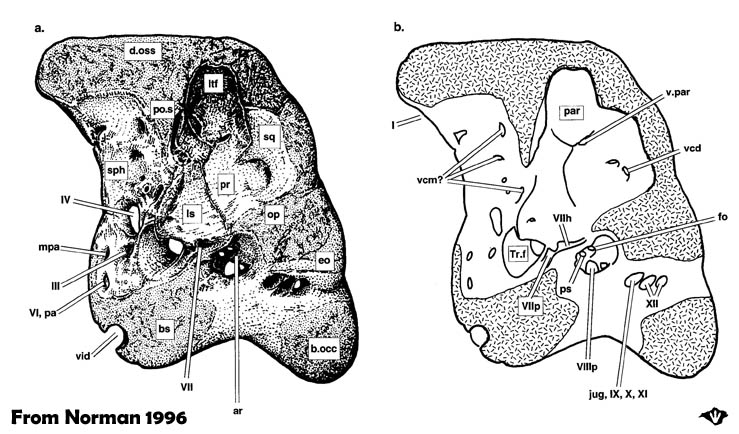

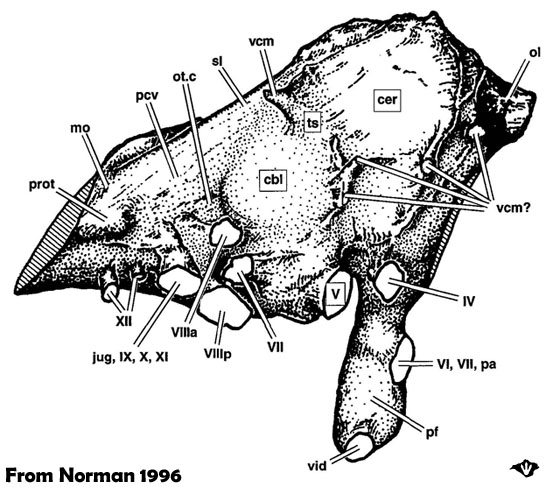

There is also a potential braincase, collected at Chilton Chine.

HULKE, J. W. 1887. VII. Supplemental Note on Polacanthus Foxii, describing the Dorsal Shield and some Parts of the Endoskeleton, imperfectly known in 1881. Philosophical Transactions of the Royal Society of London, 178, 169-172

NAISH, D. and MARTILL, D. M. 2001c. Armoured dinosaurs: thyreophorans. In MARTILL, D. M. and NAISH, D (eds). Dinosaurs of the Isle of Wight. The Palaeontological Association. Field Guide to Fossils 10. 147-184.

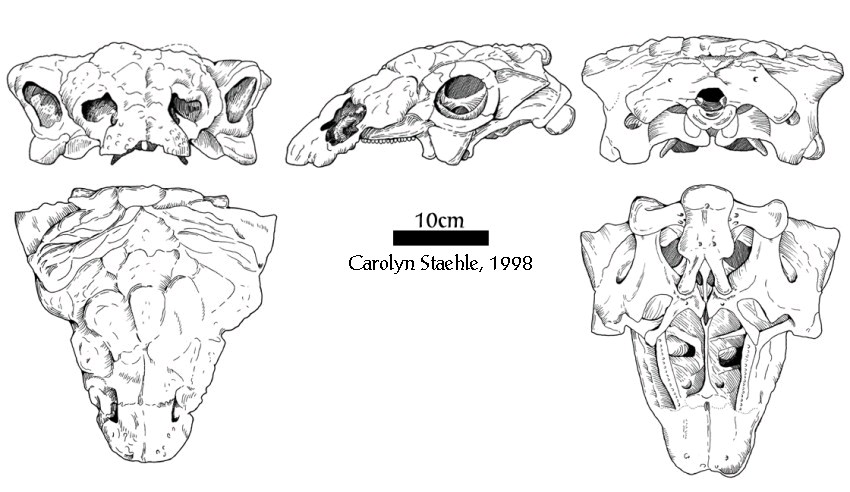

NORMAN, D. B. and FAIERS, T. 1996. On the first partial skull of an ankylosaurian dinosaur from the Lower Cretaceous of the Isle of Wight, southern England. Geological Magazine, 133, 299-310.
